What Thickness are Internal Load-Bearing Walls? Find Out Now!
When it comes to construction and renovation projects, understanding the thickness of internal load-bearing walls is crucial. These walls play a vital role in supporting the structural integrity of a building, and their thickness can impact the overall safety and stability of the structure. In this section, we will delve into the different thicknesses of internal load-bearing walls and discuss their importance in construction and renovation projects.
It is important to note that the thickness of internal load-bearing walls is determined by a variety of factors, including the size and height of the building, as well as the type of load the wall will bear. Additionally, there are guidelines and regulations that determine the minimum thickness required for these walls, which must be followed to ensure the safety and stability of the building.
Standard Thickness of Internal Load-Bearing Walls

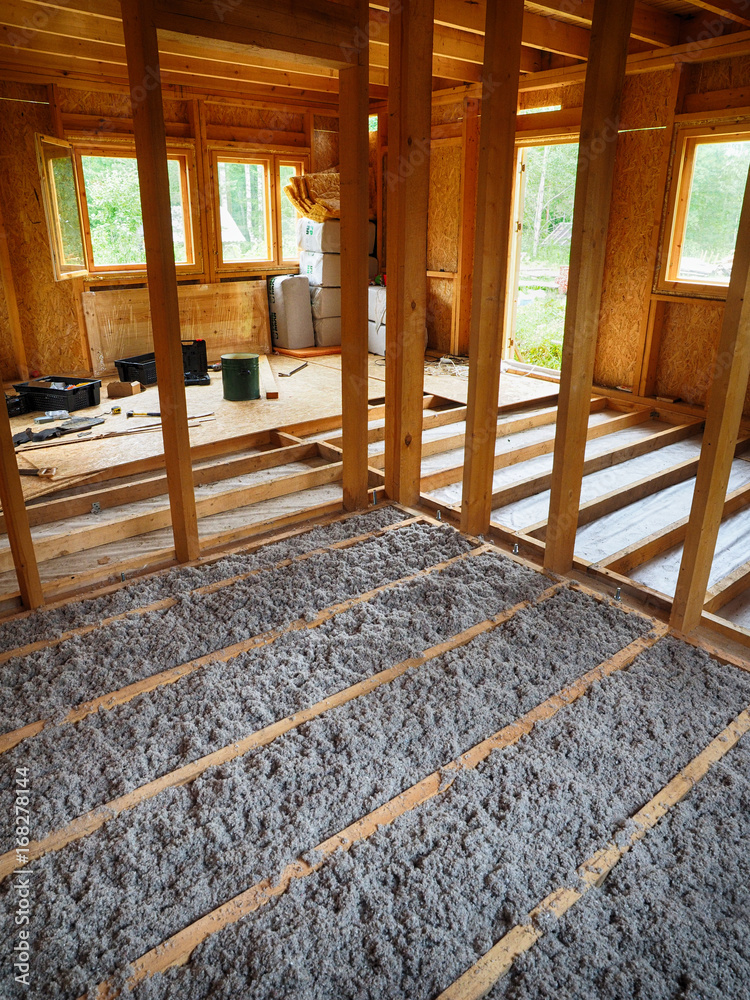

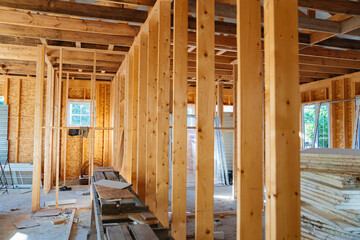

Timber Internal Load bearing walls
In Scotland, as well as the rest of the UK, CLS (Canadian Lumber Standard) timber is commonly used for various construction applications, including framing stud walls. CLS timber sizes in Scotland are typically available in metric measurements. Here are some common CLS timber sizes used in Scotland for building stud walls:
38mm x 89mm (2×4): This is a common CLS size used for vertical studs in stud wall construction. The actual dimensions are approximately 38mm in thickness and 89mm in width.
38mm x 140mm (2×6): This size might be used for more load-bearing walls or areas where additional insulation is required. The actual dimensions are approximately 38mm in thickness and 140mm in width.
38mm x 63mm (2×3): This smaller CLS size can be used for non-load-bearing walls or areas where space is limited. The actual dimensions are approximately 38mm in thickness and 63mm in width.
It’s important to note that while these sizes are common, CLS timber availability can vary based on suppliers and regions. Always check with local timber suppliers or building supply stores in Scotland to confirm the exact CLS timber sizes they offer. Additionally, consulting with architects, engineers, or other construction professionals can help ensure you choose the appropriate CLS timber size for your specific project needs.

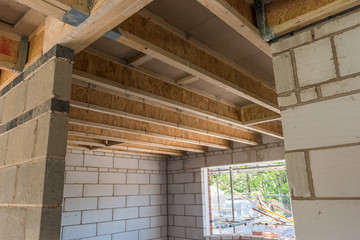

Masonry Internal Load bearing walls
The thickness of an internal masonry load-bearing wall can vary based on several factors, including the type of masonry material used, the height of the wall, the loads it needs to support, and local building codes. In the UK and many other countries, common masonry materials for load-bearing walls include brick and concrete blocks. Here are some general guidelines for masonry load-bearing wall thicknesses:
Brick Walls:
Half Brick Wall (102.5mm): This is often used for non-load-bearing partitions or walls where space is a constraint.
Single Brick Wall (215mm): Common for interior load-bearing walls in residential construction.
Double Brick Wall (365mm): Used for more substantial load-bearing walls, providing extra strength and insulation.
Concrete Block Walls:
100mm Block Wall: Equivalent to 4 inches, this is often used for non-load-bearing partitions.
140mm Block Wall: Common for interior load-bearing walls in residential buildings.
190mm Block Wall: Offers increased strength and insulation compared to thinner options.
Keep in mind that these are general guidelines, and actual wall thickness might vary based on factors specific to your project. Additionally, local building codes and regulations play a significant role in determining the minimum required thickness for load-bearing walls to ensure structural integrity and safety.
Before constructing any load-bearing wall, it’s crucial to consult with a structural engineer or architect who can evaluate the specific requirements of your project and provide recommendations based on the materials being used, the loads the wall will carry, and any local regulations that apply. This ensures that the wall is designed and constructed to meet safety standards and perform as intended.
Key Takeaways
- Internal load-bearing walls play a crucial role in supporting the structural integrity of a building.
- The thickness of these walls impacts the overall safety and stability of the structure.
- Guidelines and regulations determine the minimum thickness required for internal load-bearing walls.
- Factors such as the size and height of the building, as well as the type of load the wall will bear, influence wall thickness.
Understanding Load-Bearing Wall Construction
Load-bearing walls play a significant role in supporting a building’s structural integrity. The construction of these walls is crucial for ensuring the safety and stability of the building.
Load-bearing walls are typically constructed from Timber or Masonry which are known for their strength and durability. The thickness of these walls is determined by the weight they need to bear and the height of the building.
When constructing load-bearing walls, it is important to consider the strength of the materials used. The thickness of the wall must be sufficient to bear the load without causing any structural damage.
Load-bearing wall strength
The strength of load-bearing walls is determined by their thickness and the materials used. A thicker wall will be able to bear more weight than a thinner one, provided the materials used are of the same strength.
The materials used in load-bearing walls must be able to withstand the weight of the building and any external factors such as wind or seismic activity.
Internal load-bearing wall thickness
Internal load-bearing walls are typically thinner than external ones. This is because external walls need to withstand more external factors such as weather and wind. The thickness of internal load-bearing walls is usually determined by the height of the building and the weight it needs to bear.
It is important to consult with professionals when constructing load-bearing walls to ensure that the appropriate thickness and materials are used.
Factors Influencing Load-Bearing Wall Thickness
When it comes to determining the appropriate thickness for internal load-bearing walls, several factors need to be considered. These factors play a significant role in ensuring the structural integrity and safety of the building. Here are some of the key factors that influence the recommended thickness of load-bearing walls:
Type of Load
The type of load that the wall will bear is a critical factor in determining its thickness. If a wall is supporting a heavy load, it will need to be thicker to provide adequate support. The thickness of the wall will depend on the type of load it will be bearing, such as dead load (the weight of the building itself) or live load (the weight of people and furniture).
Building Height and Size
The height and size of the building also play a crucial role in determining load-bearing wall thickness. Taller buildings will require thicker walls to support the increased weight, while smaller buildings may require less thickness. The design of the building, such as the number of storeys, will also impact wall thickness requirements.
Structural Requirements
Recommended load-bearing wall thickness will also depend on the structural requirements of the building. The thickness needs to comply with the relevant codes and regulations, such as those set by the British Standards Institution or Building Regulations. Local building codes will also need to be considered, as they may have specific thickness requirements for load-bearing walls.
It is important to note that the recommended thickness will vary depending on the specific situation. Consulting with a professional engineer or architect can help ensure that the appropriate thickness is chosen for the specific building design and requirements.
Schedule a Conversation Today!
Wall Thickness Standards and Regulations
When it comes to wall thickness in construction, there are various standards and regulations that must be followed to ensure safety and compliance. One such regulation is set by the UK Building Regulations, which state that internal walls must be capable of carrying the loads that are likely to be imposed upon them. These loads can include the weight of the building itself, as well as any furniture, fixtures, and people that occupy the building.
In addition to these regulations, there are also guidelines set by standards organizations, such as the National House Building Council (NHBC), that provide recommendations for wall thickness based on the height and size of the building. For example, the NHBC recommends a minimum thickness of 100mm for load-bearing walls in buildings up to three storeys high and a minimum thickness of 125mm for buildings taller than three storeys.
It’s worth noting that the type of building material used can also impact wall thickness requirements. For example, masonry walls are typically thicker than stud-framed walls due to their higher load-bearing capacity.
Understanding Load-Bearing Wall Dimensions
Accurately measuring the thickness of internal load-bearing walls is crucial in construction projects. The thickness of load-bearing walls determines their strength and load-bearing capacity, which in turn affects the safety and integrity of the building structure.
When measuring the wall thickness, it’s essential to consider the materials used to construct the walls. Load-bearing walls made of concrete, for example, will be thicker than those made of timber or steel. Similarly, the height and size of the building will also affect the recommended thickness of the walls. As a general rule, taller buildings require thicker walls to support their weight and withstand external loads.
One way to measure the thickness of internal load-bearing walls is to use a stud finder or a similar device that can detect the thickness of the wall. Alternatively, measuring the distance between the inner and outer surfaces of the wall can provide an accurate measurement of its thickness.
It’s essential to take into account any additional structural components that contribute to the overall thickness of the wall, such as insulation or plasterboard. These additional layers can add to the overall thickness of the wall and affect the load-bearing capacity of the wall.
When determining the appropriate thickness of internal load-bearing walls, it’s crucial to consult with professionals and adhere to local building codes and regulations. These guidelines provide standards for the minimum thickness of load-bearing walls, ensuring that buildings are safe and structurally sound.
Conclusion
Understanding the thickness of internal load-bearing walls is crucial for any construction or renovation project. By following the recommended standards and regulations set by regulatory bodies and standards organizations, builders can ensure the structural integrity and safety of the building.
Factors such as the size and height of the building, the type of load the wall will bear, and the use of different building materials must also be considered when determining the appropriate thickness of load-bearing walls.
Properly measuring the dimensions of load-bearing walls is also important in ensuring the integrity of the structure, and should be done accurately and carefully.
Remember to consult professionals and adhere to local building codes for guidance on wall thickness standards and regulations. By doing so, you can ensure that your construction or renovation project is safe, sturdy, and meets all necessary requirements.
FAQ
Q: What is the thickness of internal load-bearing walls?
A: The thickness of internal load-bearing walls can vary depending on several factors, including the type of building structure and the load the wall will bear. However, a common standard thickness for these walls is around 125mm (5 inches) for brick walls and 100mm (4 inches) for block walls.
Q: Why is wall thickness important in construction and renovation projects?
A: Wall thickness plays a crucial role in providing structural support and maintaining the integrity of a building. It ensures that the load-bearing walls can withstand the weight and pressure they will bear, thereby preventing structural failure and ensuring the safety of the building and its occupants.
Q: How are the dimensions and measurements of load-bearing walls determined?
A: The dimensions and measurements of load-bearing walls are determined based on various factors, including building codes, structural requirements, and engineering calculations. These measurements take into account the specific load-bearing capacity needed for the wall to support the structure effectively.
Q: What factors influence the thickness of load-bearing walls?
A: Several factors influence the thickness of load-bearing walls, including the size and height of the building, the type of load the wall will bear (such as vertical loads or lateral loads), and the structural requirements and recommendations based on local building codes and regulations.
Q: Are there any standard guidelines or regulations for load-bearing wall thickness?
A: Yes, there are standard guidelines and regulations that determine the minimum thickness required for load-bearing walls. These guidelines are set by regulatory bodies and standards organizations to ensure the structural integrity and safety of buildings. It is important to consult these standards and adhere to local building codes for accurate guidance.
Q: How do you accurately measure the thickness of load-bearing walls?
A: To accurately measure the thickness of load-bearing walls, you can use a measuring tape or calipers. Measure the distance between the outer surfaces of the wall, making sure to account for any plaster or finishes. It is important to take accurate measurements to ensure proper construction and load-bearing capacity.
